Description

Overview:

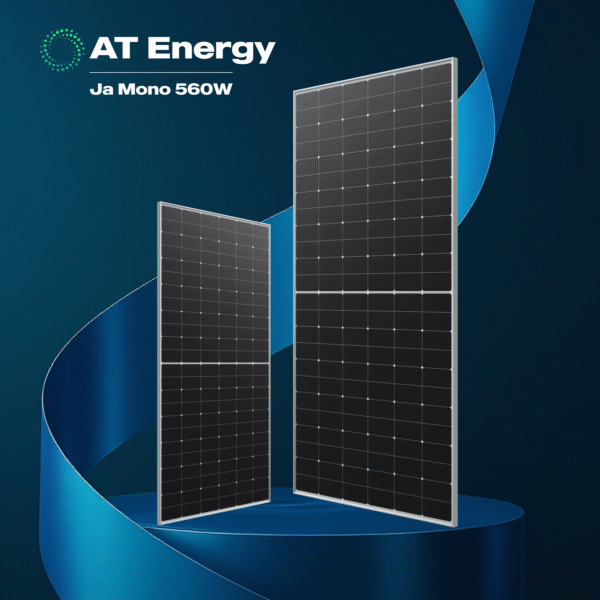

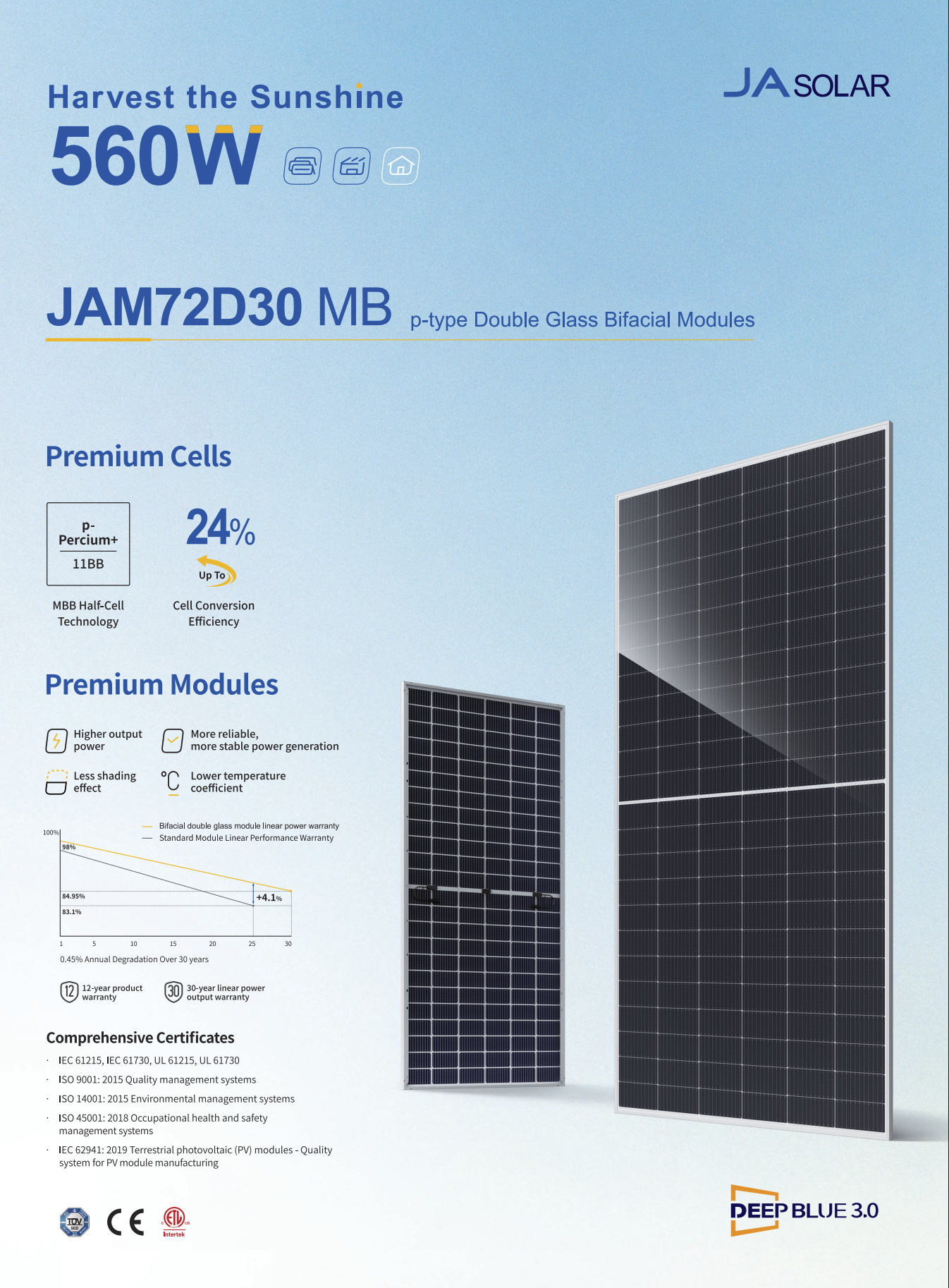

AT Energy LLC is proud to offer the JA Solar DeepBlue 3.0 JAM72D30 MB 560W bifacial module—an industry-leading, high-efficiency solution designed for demanding energy projects. Engineered with cutting-edge bifacial mono PERC cell technology and durable glass-glass construction, this panel delivers excellent energy output, long-term reliability, and optimal system economics. Ideal for large-scale solar farms and commercial applications, it guarantees excellent performance even in challenging environmental conditions.

---

Technical Specifications:

• Maximum Power Output (STC): 560W

• Efficiency: Up to 21.2%

• Module Type: Bifacial, Glass-Glass

• Dimensions: 2279 × 1134 × 30 mm

• Weight: 33.5 kg

• Front & Rear Glass: 2.0 mm tempered glass

• Cell Type: Mono PERC, bifacial

• Junction Box: IP68-rated, split, 3 diodes

• Connector: MC4-EVO2 / QC4 or equivalent

• Max System Voltage: 1500V DC

• Operating Temp Range: -40°C to +85°C

---

Key Product Features:

🔋 High Power & Efficiency for Maximum Output
With a rated output of 560W, the JAM72D30 MB series is built for high-yield performance. Its large-size cells (182mm) and 11-busbar design improve current collection and reduce resistance, maximizing efficiency and minimizing energy losses.

🌞 Bifacial Advantage – Energy from Both Sides
Generate more power per square meter. This module harnesses light from the front and reflected light from the rear, increasing total yield by up to 20–25% depending on installation surface reflectivity.

🧱 Rugged Glass-Glass Durability
The double-glass structure offers superior resistance to UV, corrosion, and moisture. It enhances fire safety and extends service life, making it suitable for desert, coastal, or high-humidity environments. It’s certified for 5400 Pa snow loads and 2400 Pa wind loads.

🧬 Long-Term Performance and Low Degradation
JA Solar’s advanced cell technology ensures:

• Year 1 degradation: ≤ 2%

• Annual degradation (2–30 years): ≤ 0.45%

• Guaranteed output after 30 years: ≥ 84.95%

🔒 Certified Quality

• IEC 61215, IEC 61730

• ISO 9001, ISO 14001, ISO 45001

• Fire rating: Class C

• PID resistance, salt mist & ammonia certified

---

Warranty:

• 12-Year Product Materials & Workmanship Warranty

• 30-Year Linear Power Output Warranty

• Minimum 84.95% output at year 30

---

Why Choose the JAM72D30 MB from AT Energy LLC?

AT Energy LLC delivers top-tier solar solutions that combine performance and reliability. The JA Solar JAM72D30 MB bifacial module is a proven choice for installers and developers looking for enhanced energy yield, strong mechanical reliability, and low long-term cost of ownership. Whether you’re powering a large-scale solar farm or commercial rooftop, this module ensures optimal returns, low LCOE, and future-proof technology.
