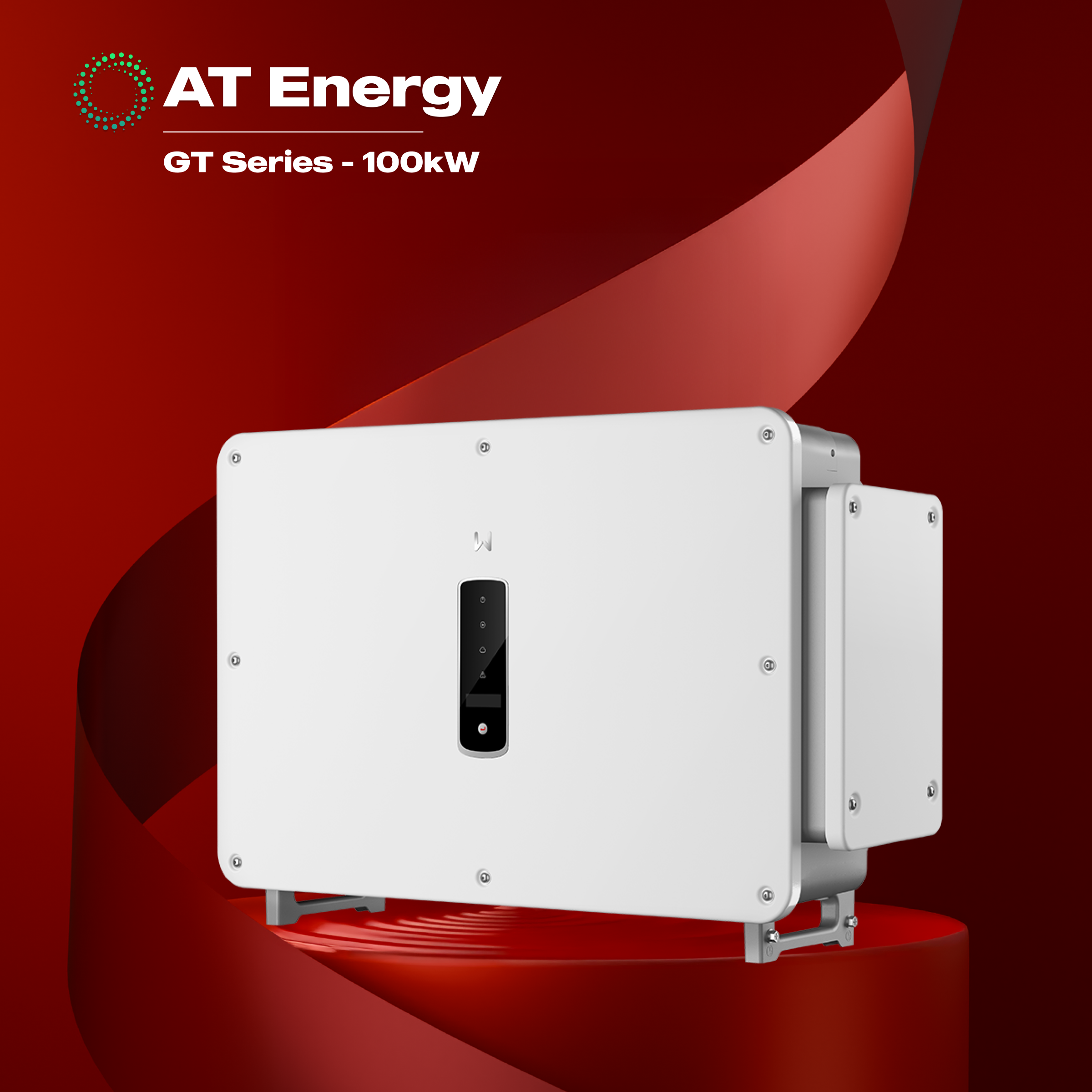

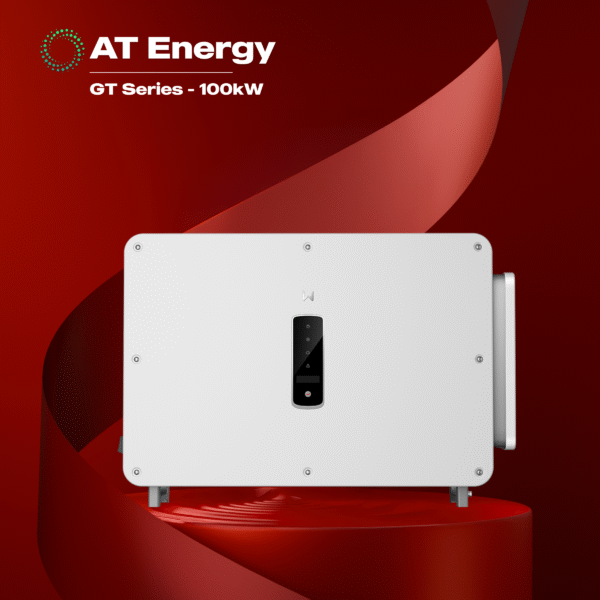

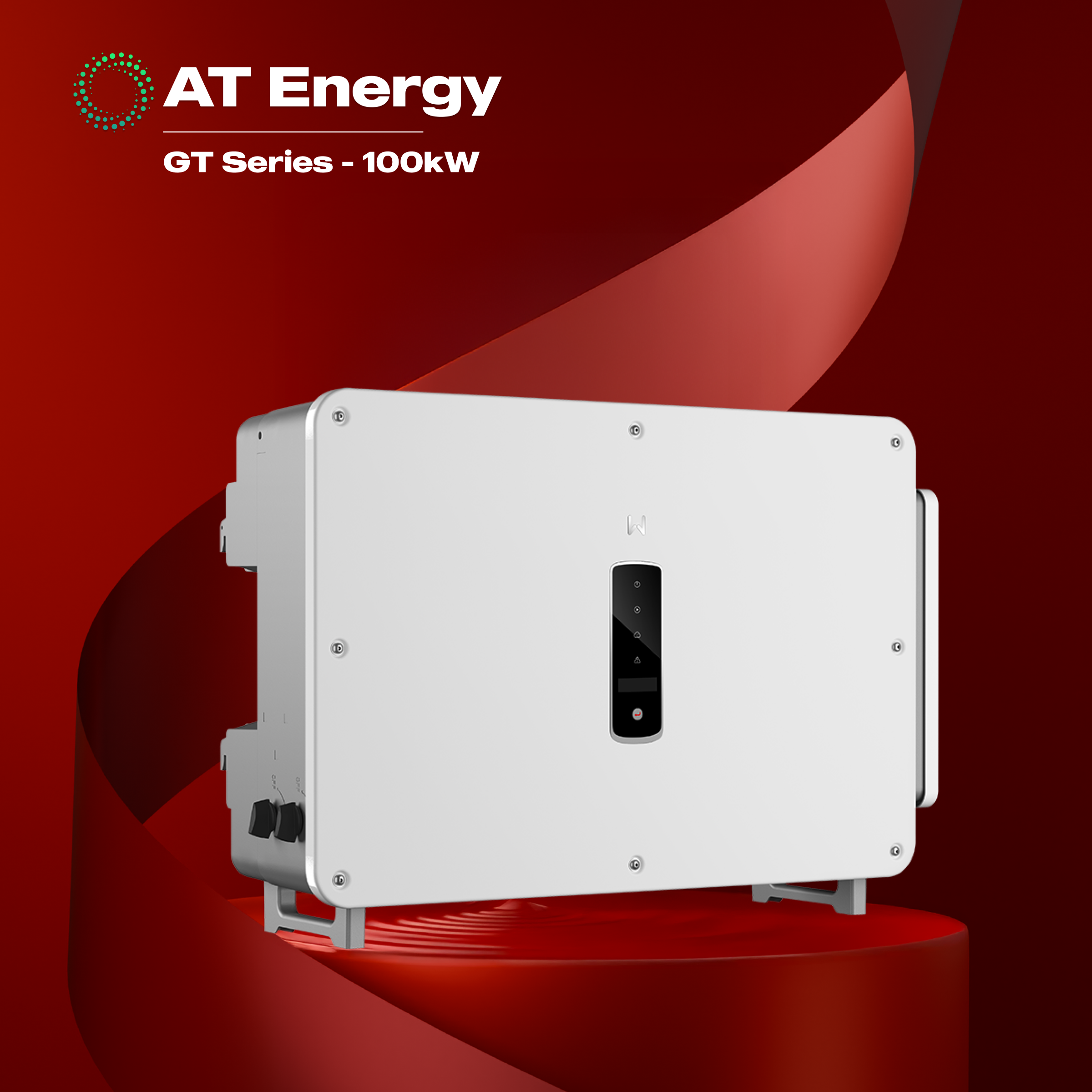

GT Series - 100kW
GT Series - 100kW - Image 2
GT Series - 100kW - Image 3
GT Series - 100kW - Image 4
GT Series - 100kW - Image 5

GT Series – 100kW

Original price was: KSh 490,000.00.Current price is: KSh 485,000.00.

Highlights:

  • High-power commercial range: 100 kW to 125 kW three-phase string inverters, ideal for large commercial and industrial installations.

  • Multiple MPPTs: Offers 8 MPPTs (up to 10 MPPTs for higher output models), allowing optimized layout and shading management.

  • High string input current: Supports up to 21 A per DC string, maximizing compatibility with high-performance modules.

  • Oversizing & overload flexibility: Permits up to 150% DC input oversizing and 110% AC output overloading for better energy yield—even in hot conditions with full output maintained up to 45 °C.

  • Robust design & safety features: IP66 protection with optional C5 corrosion resistance, Type II SPD on both DC and AC sides, and optional AFCI for enhanced safety.

Why it’s a fit:
The GoodWe GT Series delivers high power density, flexible system integration, and exceptional safety—perfect for demanding commercial/industrial PV projects where efficiency and reliability translate to better ROI.

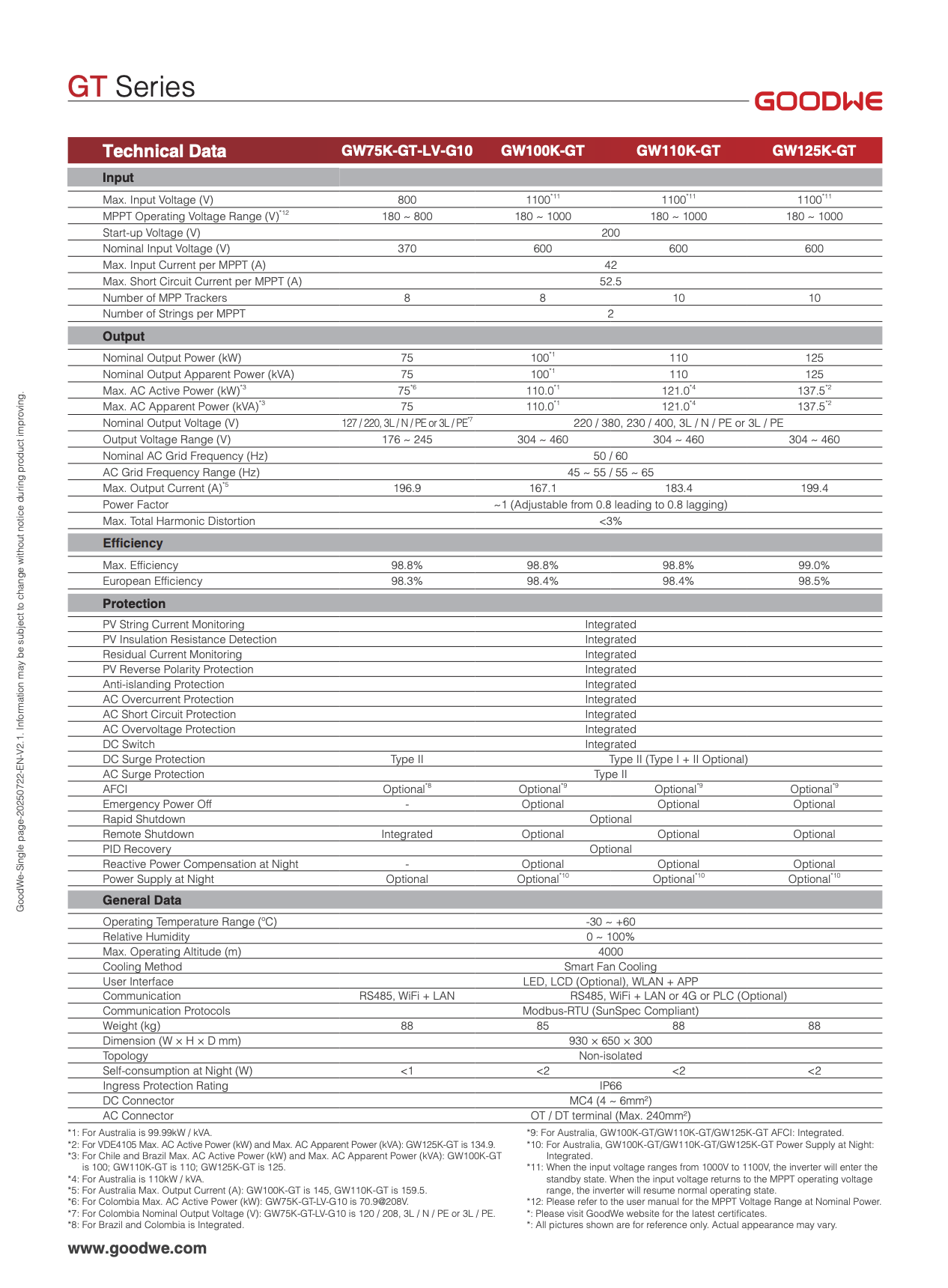

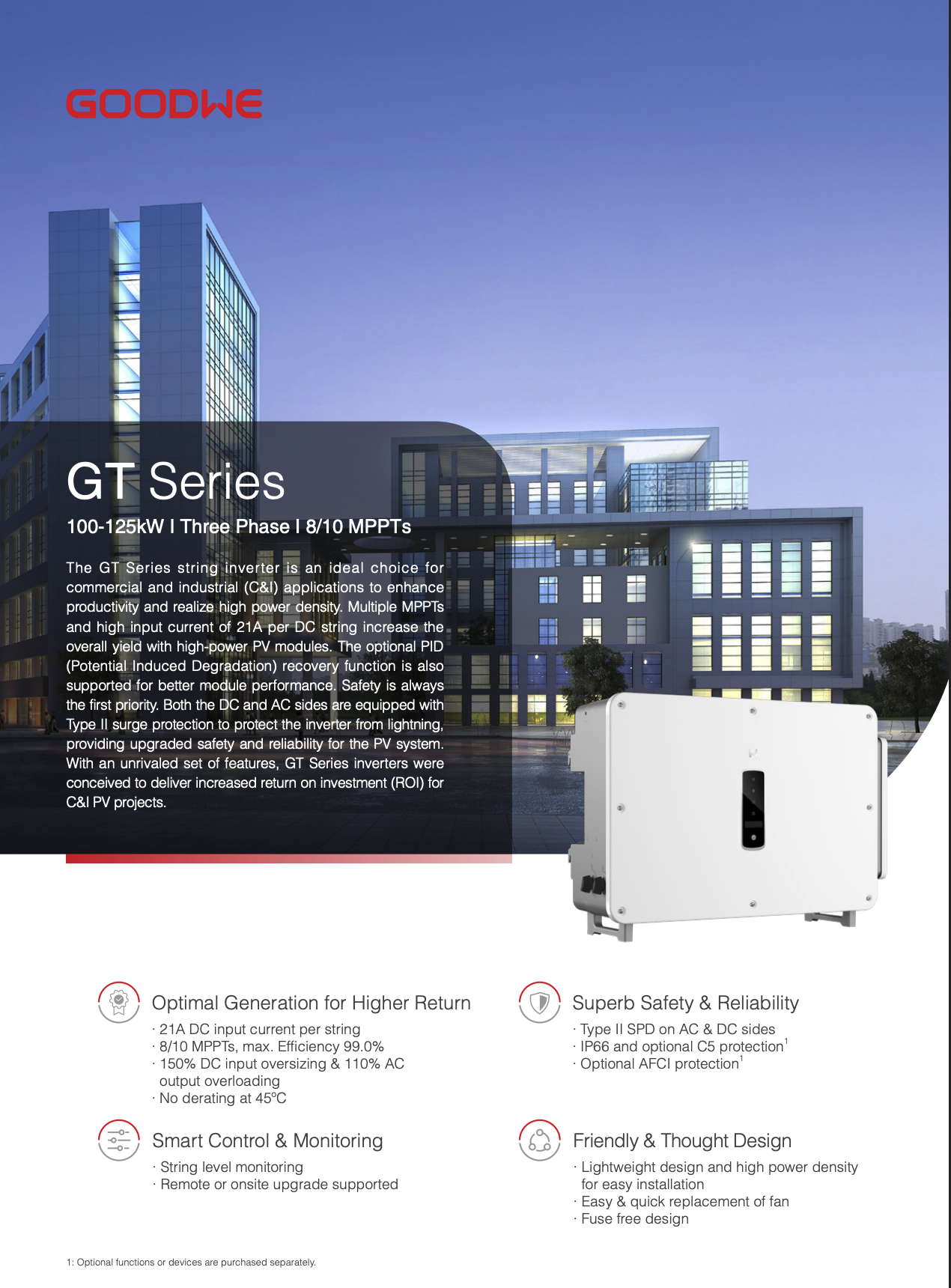

Download Datasheet

100 in stock

SKU: GW25K-MT-1-1-1 Category: Brand:

Description

Overview

The GoodWe GT Series (100 kW–125 kW three‑phase) is purpose-built for commercial and industrial solar systems, offering high efficiency, multiple MPPTs, and rugged build quality designed to support large-scale deployments with maximum uptime and energy yield.

Key Technical Specifications

Feature Specification
Power Range 100 kW, 110 kW, 125 kW nominal
Max. Efficiency Up to 99.0%
European Efficiency 98.3–98.5%
MPPTs 8 MPPTs (100 kW); 10 MPPTs (110–125 kW); 2 strings per MPPT
DC Input Current / String Up to 21 A per string (42 A per MPPT)
DC Oversizing / AC Overloading 150% DC oversizing; 110% AC overloading
Max. DC Voltage 1100 V
MPPT Voltage Range Up to ~1000 V
Start-Up Voltage ~200 V
AC Output Voltage & Frequency 220/380 V, 230/400 V (3L/N/PE or 3L/PE); 50/60 Hz
Operating Temperature –30 °C to +60 °C
Altitude Rating Up to 4000 m
Dimensions 930 × 650 × 300 mm
Weight Approx. 85–88 kg

Protection & Safety Features

  • Residual current detection

  • String-level monitoring

  • Type II SPD on both AC and DC sides (Type I+II optional)

  • DC switch, reverse polarity, overvoltage, and short-circuit protection

  • Optional Arc-Fault Circuit Interrupter (AFCI)

  • Optional PID recovery

  • Emergency power off and rapid shutdown support

  • Night-time reactive power compensation

Smart Monitoring & Connectivity

  • RS485, Wi-Fi, LAN (optional 4G or PLC)

  • On-site and remote firmware upgrade

  • String-level current monitoring

  • LED/LCD interface (depending on model)

Applications & Use Cases

  • Large-scale commercial rooftops

  • Industrial PV plants requiring multiple MPPT inputs

  • High-current module compatibility

  • Installations in high-temperature or harsh environments

Why Choose GoodWe GT Series?

  • High efficiency and no derating up to 45 °C

  • 10 MPPT architecture enables better energy harvesting

  • IP66 enclosure and optional C5 corrosion protection

  • Built-in protections and smart monitoring for O&M ease
